Actively heated chamber up to 100° C
Dual extrusion 3D printing
Extra large build volume
Flexible heated build plate up to 105 °C
Extra large build volume

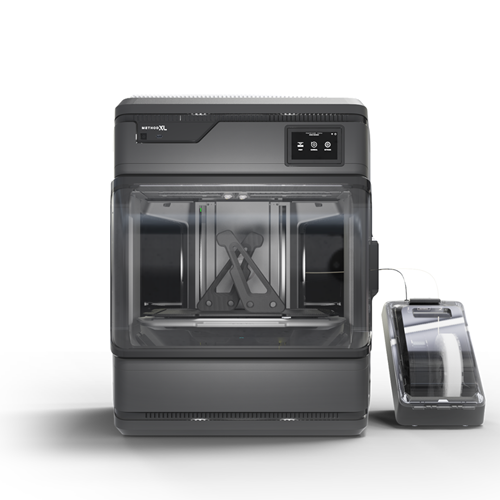

With the largest build volume of any UltiMaker 3D printer, the Method XL is the ultimate 3D printing solution for large-scale projects. Print with industrial-grade materials and exceptional dimensional accuracy without the need to compromise on the size of your parts. 29 liters
Heated chamber. Heated build plate.
Chamber actively heated up to 100 °C
Build plate heated up to 105 °C
VECT thermal regulation system
Patented Variable Environmental Controlled Temperature (VECT) 100 thermal regulation evenly heats and controls the print environment. The result? Parts are 2x stronger on the z-axis, and 2x more accurate across the board. The Method XL also has a heated build plate for even better adhesion and temperature control.
High precision for Low tolerances.
Exceptional dimensional accuracy
The Method XL has been especially engineered to maintain dimensional accuracy and tight tolerances while printing even the largest ABS parts. Not only does the Method XL avoid warping and layer adhesion issues, but it creates massive parts with industrial-grade precision.
Dimensional accuracy
+/- 0.2mm
or +/-.002mm per mm of travel*
*(Whichever is greater.) Based on internal testing of selected geometries.
Quick-dissolving supports for ABS
RapidRinse on the Method XL enables the fastest support removal for complex FDM prints. Create the geometries you want – in any orientation. Then watch as those water-soluble supports dissolve before your eyes.
External material case
The Method XL's external moisture-controlled material case ensures peak performance from your professional-grade materials.
Two filters, one seamless print
Both a HEPA filter and an activated carbon filter are integrated into the machine assuring that you can use the Method XL indoors without worrying about harmful fumes or strong smells.
Highlight specifications
Heated chamber max temperature
100 °C
Dual extruder build volume (XYZ)
305 x 305 x 320 mm (12 x 12 x 12.6 in)
Heated build plate
Heated build plate with removable, flexible build surface
Dimensions
Build volume (dual material)
305 x 305 x 320 mm (12 x 12 x 12.6 in)
Assembled dimensions
Printer: W 655 x D 565 x H 815 mm (W 25.8 x D 22.2 x H 32.1 in)
Material case: W 223 x D 328 x H 319 mm (W 8.8 x D 12.9 x H 12.6 in)
Print technology
Fused Deposition Modeling (FDM)
Compatible filament diameter
1.75 mm
Weight
Printer: 56.5 kg (125 lbs)
Material case: 1.9 kg (4.2 lbs)
Maximum power output
1400 W
Printer properties
Layer resolution
0.4 mm nozzle: 100 - 400 micron
Display
5" (12.7 cm) full-color capacitive touchscreen
Extruder replacement
Swappable performance extruders
Print head
Dual-extrusion print head with swappable extruders
Nozzle diameter
0.4 mm
Operation parameters
Maximum heated chamber temperature
100 °C
Maximum heated build plate temp
105 °C
Maximum extruder temperature
300 °C
Operating sound
57.1 +/- 3 dB
Build plate
Flexible build plate
Ecosystem
Supplied free software
CloudPrint
Supported OS
MacOS, Windows
File transfter
Wi-Fi, Ethernet, USB
