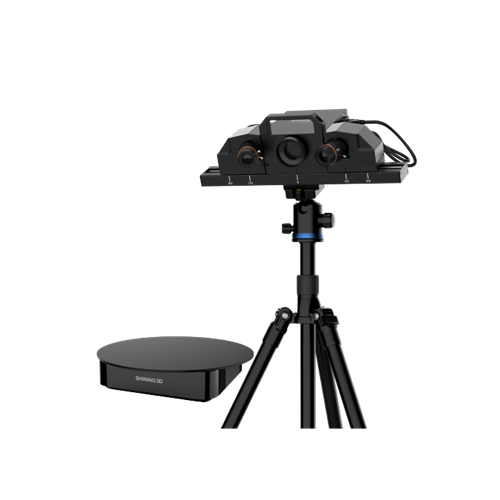

    Shining 3D Einscan Transcan C - Transcan C - Professional Desktop Scanner

    SKU: 6970163084336

    SHINING3D developed the Transcan C as a professional-grade 3D scanner that captures exceptionally high resolution and accurate scans of objects from small to medium sized in various industry. In addition, the 12 MP cameras produce rich and detailed textured 3D model which give an intuitionistic image of the physical object.

    Dual Scan Range Ready-to-Use — The slide-rail design allows for the scanning range to switch between 150 mm x 96 mm and 300 mm x 190 mm to meet variable objects sizes.

    The algorithm of multi-resolution fusion allows a mixture of 3 levels of resolution of high, med or low in one project for complex scanning tasks, which highly improves efficiency without duplication of work.

    Two 12 MP color cameras are installed to capture a detailed 24-bit color map, representing a true-color of the physical object. It gives an ideal solution to visual display.

    High-Accuracy Scan Data — The compact design scanner produces high accuracy of 0.035 mm at its inner position, and of 0.05 mm at its outer position. These results are valuble to many applications for measurement.

    Micro Details Reproduction — The minimum point distance can reach 0.0375 mm (resolution) to reproduce fine details on the surface in its inner position of 150 mm x 96 mm.

    The scanning process is fully automatic with the turntable. This combined with our software’s stitching algorithm, provides efficient acquisition of 3D data without manual intervention.

    Light Source
    White LED Light

    Calibration Mode Manual calibration
    Scan Mode Structured-light scan with automatic turntable
    Scan Range 150 mm x 96 mm 300 mm x 190 mm
    Single Shot Accuracy 0.035 mm 0.05 mm
    Scan Speed <70 s (8 scans/turn without texture); <3 s (single frame without texture)
    Texture Color RGB 24-bit color
    Texture Map 12 mega pixels, high fidelity color
    Working Distance 260 mm 480 mm
    Point Distance 0.0375 mm;0.075 mm;0.114 mm 0.075 mm;0.154 mm;0.23 mm



    £4,073.00

    Fixed Rate Payments With Tax Relief

    Lease Term 5 Years
    Weekly Payment £21.15
    First Payment £274.93
    57 Monthly Payments £91.64
    Total Cost £5,498.55
    Tax Relief @ 19% -£1,044.72
    Nett Cost Of Finance £4,453.83
