EinScan Autoscan-Inspec

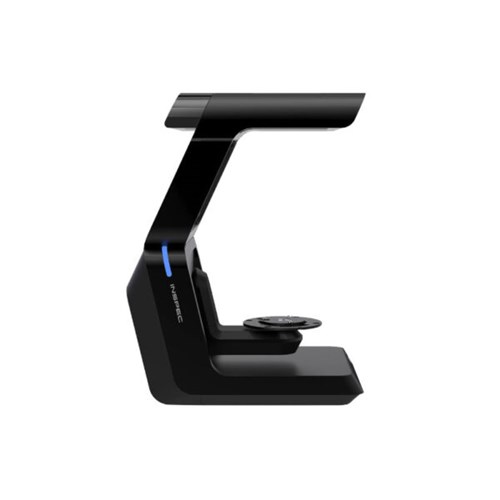

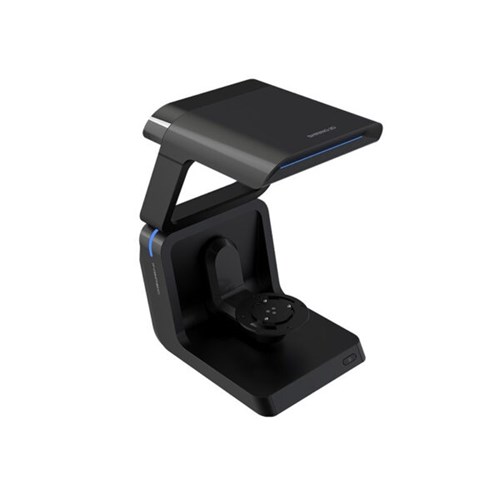

SHINING3D AutoScan Inspec 3D scanner

The AutoScan Inspec 3D scanner is designed to improve the scanning performance of small and complex parts. It has an intuitive user interface which makes it easy to use. It is a fully automatic and full-size 3D scanning device.

The scanner has the accuracy of the metrological class, thus ensuring high scanning accuracy. AutoScan Inspec has a dual camera to ensure very high precision 3D scanning of small and complex objects.

Metrological grade accuracy

The AutoScan Inspec 3D scanner has an advanced scanning technology using blue structured light, thus ensuring a scanning accuracy of 10 μm to provide the most faithful 3D model of the scanned element.

Automatic scanning

AutoScan Inspec is a fully automated desktop 3D scanner. It enables users to easily and quickly 3D scan.

The fine details

The scanner has a built-in dual camera with a resolution of 5 MP, which ensures precise 3D scanning of small and complex objects.

SHINING3D AutoScan Inspec 3D scanner is a small device with a working area of ​​100 x 100 x 75 mm. Scanning is by structured blue light with 10 ° C ~ 30 ° C scanning working temperature.

Software

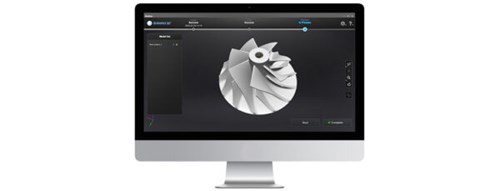

The AutoScan Inspec 3D scanner has Ultrascan software developed by SHINING 3D, which is intended for use in the industrial sector. The software has a friendly and intuitive interface ensuring easy operation. Ultrascan allows you to export data in a CAD / CAM system that is compatible with programs such as Geomagic Control X, Design X, Zbrush, Polyworks, etc.

Application

The AutoScan Inspec 3D scanner is ideally suited to non-contact measurement, inspection and quality control, reverse engineering and product design.
